Novamig | Novamix

503 DP | 541 AC/DC DP

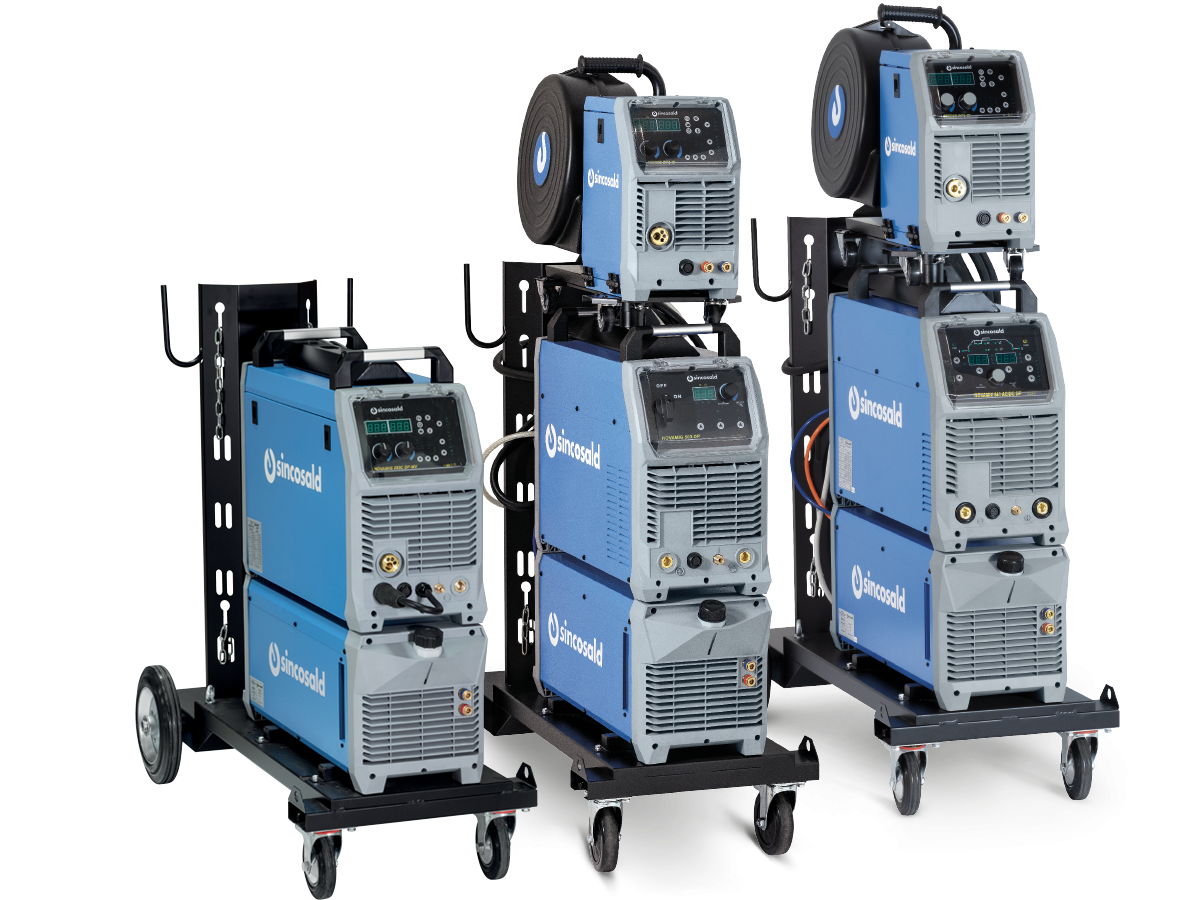

The NOVAMIG INVERTER generator 503 DP is a latest generation machine equipped with continuous inductance adjustment e presenting very specific characteristics both in welding and in the arc.

Another novelty that differentiates this generator from previous models is the intuitive adjustment of the synergic waves directly from the front panel.

Welding curves are stored in the software synergistic, pulsed, double pulsed.
It is complete with BURN - BACK which allows us to act on cutting the thread at the right length to facilitate the new arc ignition, and SOFT - START which allows us to act on the regulation of the engine starting speed improving consequently, the arc striking.

Another really interesting machine is the NOVAMIX 541 AC/DC DP as well as having all the features of the 503 DP, in addition, it is prepared for welding in TIG DC and AC/DC with high frequency The power sources are integrated by a Trolley cylinder holder with
cooling GR3 ed equipped with a wire feeder 4 rollers - FEEDER WP3 - 4R and an extension standard from 5 or 10 Mt.

  • INVERTER TECHNOLOGY
  • ENERGY SAVING
  • INDUCTANCE ADJUSTMENT ELECTRONICS AND CONTINUOUS
  • 2/4 STROKE SELECTION
  • DIGITAL DISPLAY AMPERE - VOLT
  • ADVANCE BUTTON WIRE - GAS TEST
  • PRE AND POST GAS REGULATION
  • BURN BACK ADJUSTMENT
  • SOFT START ADJUSTMENT
  • STORED SYNERGIC PROGRAMS
  • DOUBLE PULSED
  • TIG DC - AC / DC HF (NOVAMIX 541 AC / DC DP)
  • COUPLING WITH MOTORGENERATOR
Main features
  • New PWM technology and technology IGBT inverter.
  • Manual MIG / MAG / SYN / Pulsed synergistic / Double synergic pulsed
  • Synergistic programs for aluminium, steel mild, stainless steel and CuSi
  • JOB mode (Save and recall 100 different work JOBs)
  • 2T / 4T / S4T / welding mode Spot Welding
  • Adjustment of function parameters
  • MMA function (coated electrode)
  • VRD (device for reducing the voltage)
  • Hot start (improves arc striking of the electrode)
  • Adjustable Arc Force
  • TIG DC
  • Lift Arc ignition (guarantees integrity of tungsten during ignition of the arch)
  • TIG DC and AC / DC HF (NOVAMIX 541 AC / DC DP)
  • 2T / 4T trigger control
  • Adjustable down slope
  • Air cooling mode / H20
  • Wire feeder, with 4 rollers drive can be equipped with coil up to Ø300 mm
  • MIG torch connection with Euro connection
  • Degree of protection IP23
  • Tolerance on the supply voltage
  • Spool gun torch connection
  • Predisposition for remote control
Application fields
Metallurgical industry
Shipbuilding
Buildings
Petrochemical industry
Railway industry
Military industry
Food industry
Automotive industry
Earthmoving
Sheet metal processing
